Securing Web Server with HTTPS linux ubuntu 20.04

In this tutorial I’ll discuss about how to securing webserver with https on linux ubuntu 20.04.  When we use http protocol all data is sending using plaintext, so that data can be read by third parties. It’s not secure. So we must add the additional protocol using SSL or TLS for the secure web (HTTPs). Make sure you have configured webserver (How to Install webserver ubuntu 20.04) with dns service (How to configure DNS server 20.04).

Generate SSL Certificate with openssl.

root@Taufik:~# openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout /etc/ssl/private/taufiknet.key -out /etc/ssl/private/taufiknet.crt

Then, configure the infromation.

Generating a RSA private key
writing new private key to '/etc/apache2/apache2.pem'
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
Country Name (2 letter code) [AU]:ID
State or Province Name (full name) [Some-State]:Lampung
Locality Name (eg, city) []:Pesawaran
Organization Name (eg, company) [Internet Widgits Pty Ltd]:TAUFIKN
Organizational Unit Name (eg, section) []
Common Name (e.g. server FQDN or YOUR name) []
Email Address []

Enable mod ssl :

root@Taufik:~# a2enmod ssl

Restart apache2 :

root@Taufik:~# systemctl restart apache2


Edit your apache file conf :

root@Taufik:~# nano /etc/apache2/sites-available/taufikweb.conf

Change and add some configuration :

<VirtualHost *:443>
# The ServerName directive sets the request scheme, hostname and port t>
# the server uses to identify itself. This is used when creating
# However, you must set it for any further virtual host explicitly.
# ServerName

DocumentRoot /var/www/html/taufikweb

SSLEngine on
SSLCertificateKeyFile /etc/ssl/private/taufiknet.key
SSLCertificateFile /etc/ssl/private/taufiknet.crt

ErrorLog ${APACHE_LOG_DIR}/error.log
CustomLog ${APACHE_LOG_DIR}/access.log combined

# after it has been globally disabled with "a2disconf".
#Include conf-available/serve-cgi-bin.conf

Save and exit, then restart apache2 service.

root@Taufik:~# systemctl restart apache2

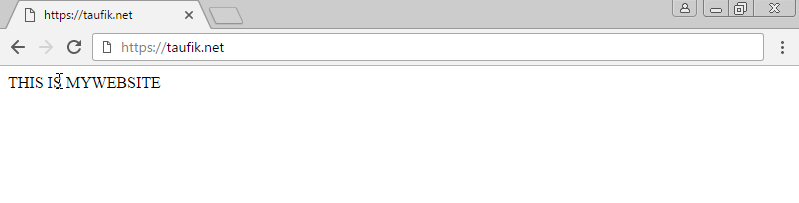

Now test from client :

Access url  https://youripaddress or

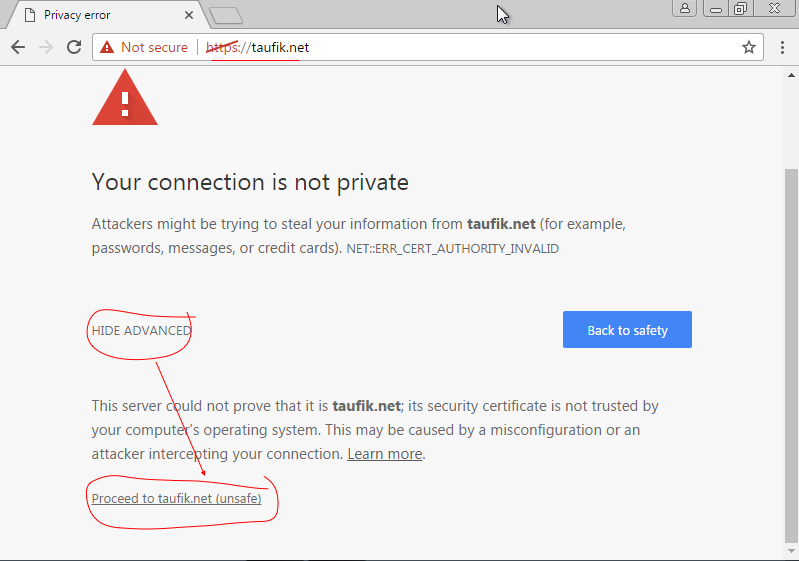

When appear error message, click hide advanced then click proceed. It’s because the ssl certified is not valid certificate.
