How To Configuration Static Routing (3 Routers) Cisco Packet Tracer

In the preceding tutorial¬†Configuration static routing I’ve discuss about static routing with 2 routers. And in this tutorial I’ll discuss static routing with 3 routers.

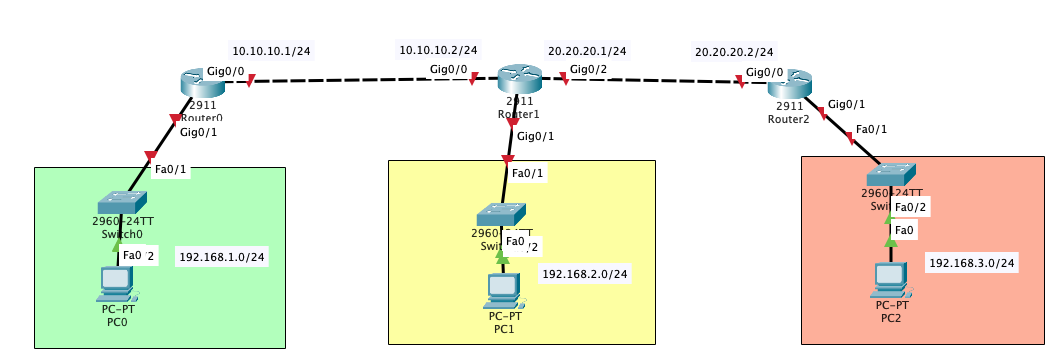

The following is the topology that will be used. you can use Router type 2911 for this lab:



Let say you already configured ip address from all router’s and all pc’s.¬† and each router that direct connect can be connected, each pc that connect to each router can be connected too.

Now we will try to configure static routing on each router.

Configure static routing on R1 :

Configure static routing on R2 :

Configure static routing on R3 :

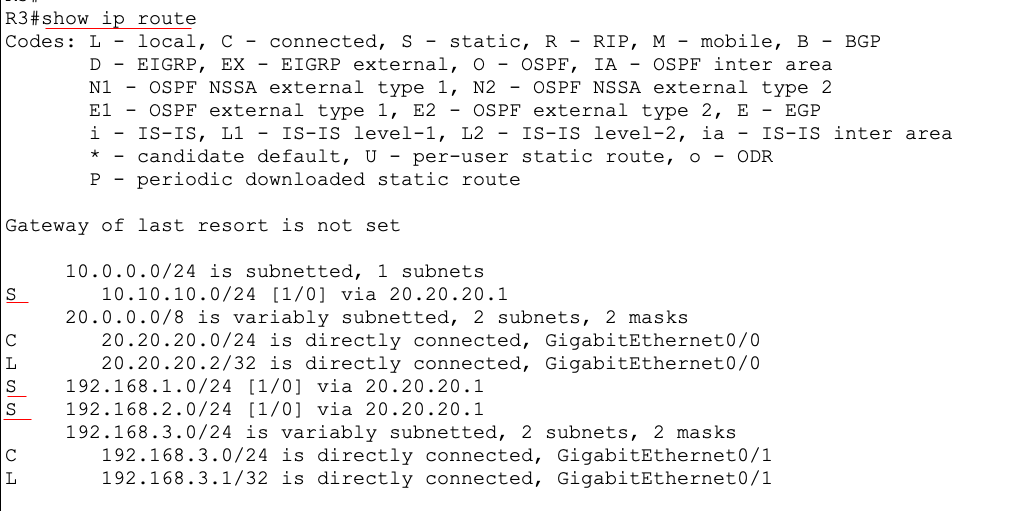

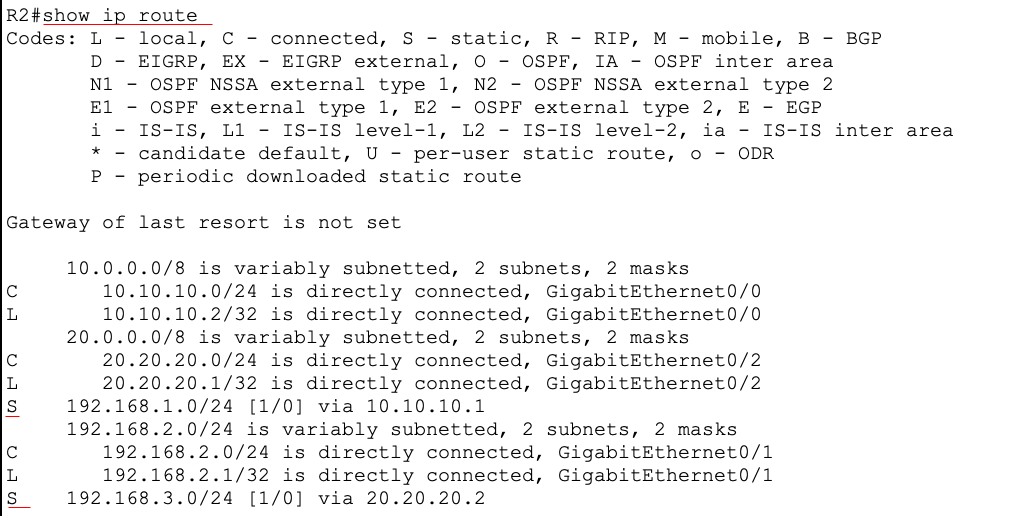

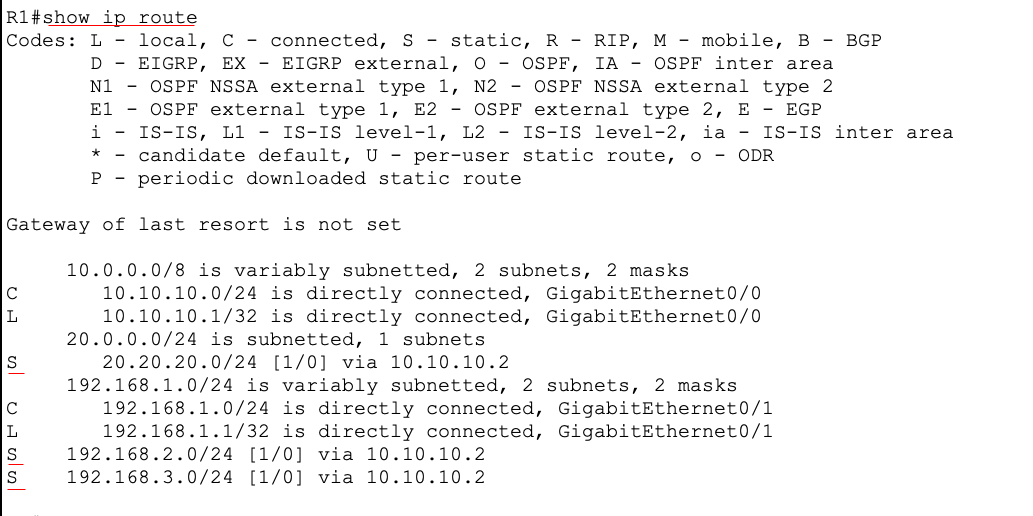

Check Status routing on each router :

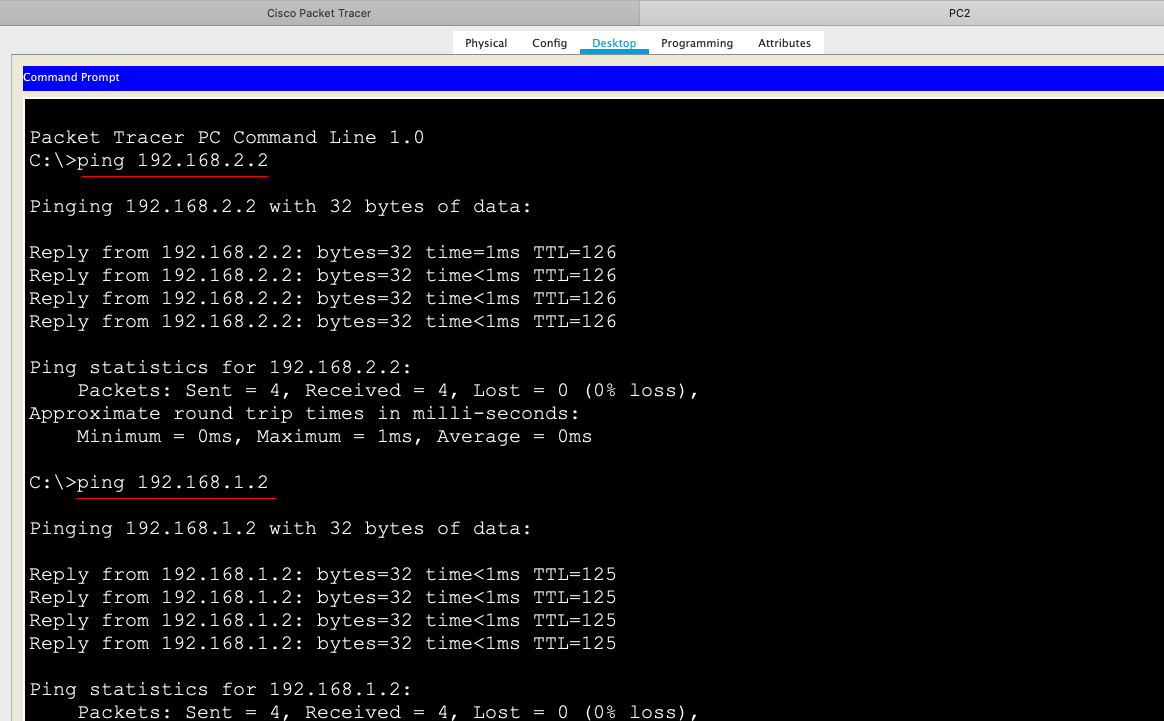

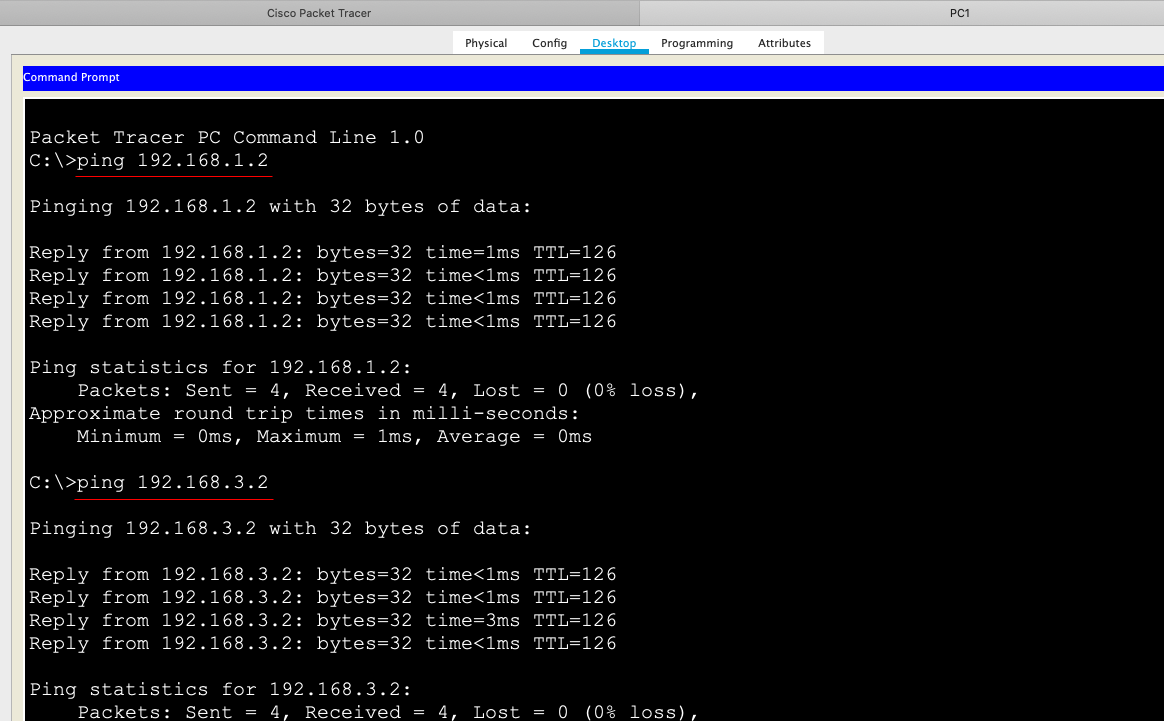

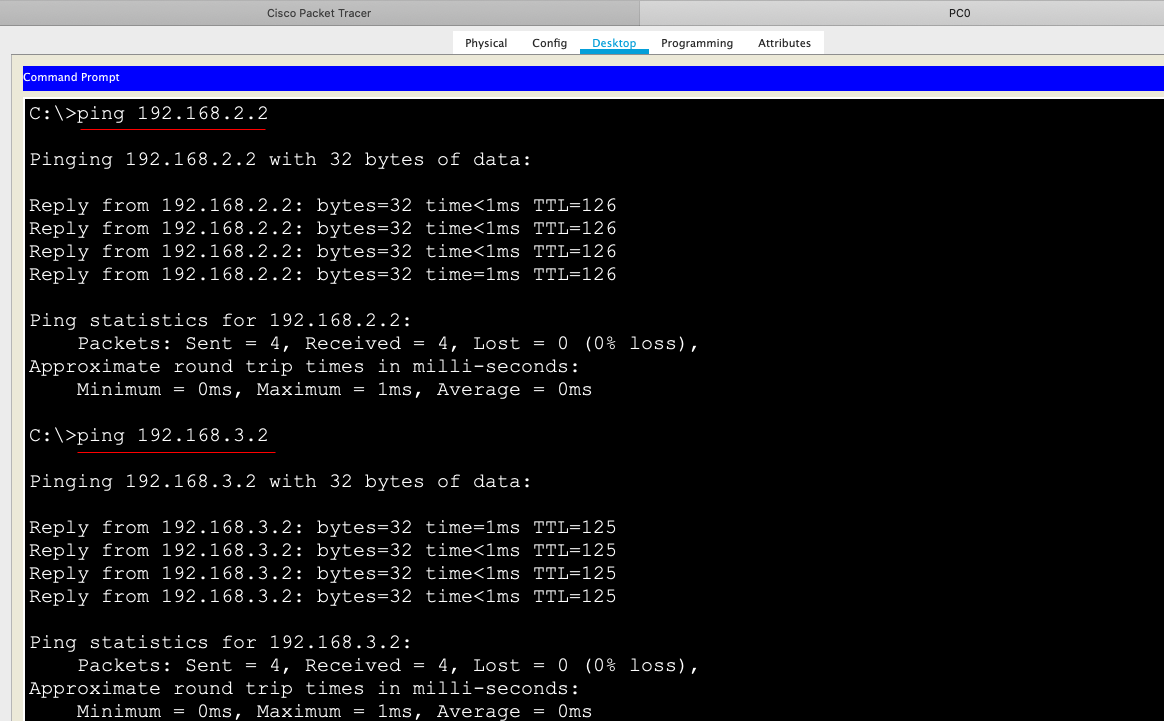

And then, test ping between PC. make sure all pc can be connected to each other.

Connection has been successfull.
