802.1Q tunneling (Q-in-Q) is a services that creates Layer 2 Tunneling by adding second vlan tag on the Ethernet Frames. is often used by Metro Ethernet Service Provider to tunnel traffic between their customers. I Think is called VLAN running in the VLAN.

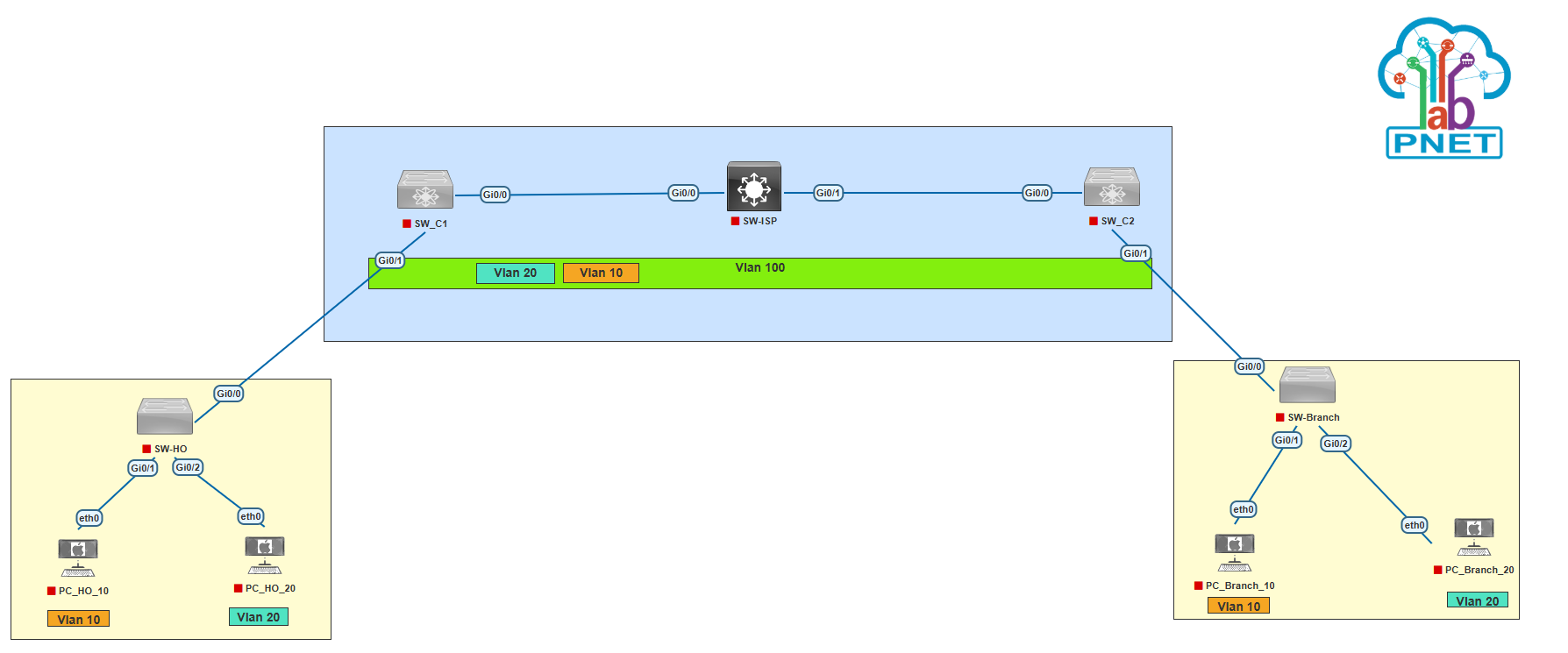

As the example topology below we can see that we have two Connection sites with the different location. But we have requirement to keep connecting both as layer vlan connection.
Now Let’s start configuration from SW-ISP, SW_C1 and SW_C2.
Configuration on SW-ISP, Create VLAN 100 and configuration trunk on interface g0/0-1
SW-ISP(config)#vlan 100 SW-ISP(config-vlan)#name QinQ-Tunneling SW-ISP(config-vlan)#exit SW-ISP(config)#int range g0/0-1 SW-ISP(config-if-range)#switchport trunk encapsulation dot1q SW-ISP(config-if-range)#switchport mode trunk SW-ISP(config-if-range)#end
Configuration on SW_C1
Create VLAN 100
SW_C1(config)#vlan 100 SW_C1(config-vlan)#name QinQ-Tunneling SW_C1(config-vlan)#exit
Config interface trunk on G0/0 interface
SW_C1(config)#int g0/0 SW_C1(config-if)#switchport trunk encapsulation dot1q SW_C1(config-if)#switchport mode trunk SW_C1(config-if)#switchport trunk allowed vlan 100 SW_C1(config-if)#end SW_C1#
Configure QinQ Tunneling on G0/1. which is the interface connected to the customer.
SW_C1(config)#int g0/1 SW_C1(config-if)#switchport mode dot1q-tunnel SW_C1(config-if)#l2protocol-tunnel SW_C1(config-if)#switchport access vlan 100 SW_C1(config-if)#exit SW_C1(config)#
Configuration on SW_C2
Create VLAN 100
SW_C2(config)#vlan 100 SW_C2(config-vlan)#name QinQ-Tunneling SW_C2(config-vlan)#exit
Config interface trunk on G0/0 interface
SW_C2(config)#int g0/0 SW_C2(config-if)#switchport trunk encapsulation dot1q SW_C2(config-if)#switchport mode trunk SW_C2(config-if)#switchport trunk allowed vlan 100 SW_C2(config-if)#exit
Configure QinQ Tunneling on G0/1. which is the interface connected to the customer.
SW_C2(config)#int g0/1 SW_C2(config-if)#switchport mode dot1q-tunnel SW_C2(config-if)#l2protocol-tunnel SW_C2(config-if)#switchport access vlan 100 SW_C2(config-if)#end SW_C2#
Now Configure SW-HO and Branch
Configure SW-HO
Add Vlan 10 and Vlan 20
SW-HO(config)#vlan 10 SW-HO(config-vlan)#exit SW-HO(config)#vlan 20 SW-HO(config-vlan)#exit
Configure switch port trunk on G0/0 that connected to SW_C1
SW-HO(config)#int g0/0 SW-HO(config-if)#switchport trunk encapsulation dot1q SW-HO(config-if)#switchport mode trunk SW-HO(config-if)#exit
Then Configure access port to PC
SW-HO(config)#int g0/1 SW-HO(config-if)#switchport mode access SW-HO(config-if)#switchport access vlan 10 SW-HO(config-if)#exit SW-HO(config)#int g0/2 SW-HO(config-if)#switchport mode access SW-HO(config-if)#switchport access vlan 20 SW-HO(config-if)#exit SW-HO(config)#
Configure SW-Branch
Add Vlan 10 and Vlan 20
SW-Branch(config)#vlan 10 SW-Branch(config-vlan)#exit SW-Branch(config)#vlan 20 SW-Branch(config-vlan)#exit
Configure switch port trunk on G0/0 that connected to SW_C2
SW-Branch(config)#int g0/0 SW-Branch(config-if)#switchport trunk encapsulation dot1q SW-Branch(config-if)#switchport mode trunk SW-Branch(config-if)#exit
Then Configure access port to PC
SW-Branch(config)#int g0/1 SW-Branch(config-if)#switchport mode access SW-Branch(config-if)#switchport access vlan 10 SW-Branch(config-if)#exit SW-Branch(config)#int g0/2 SW-Branch(config-if)#switchport mode access SW-Branch(config-if)#switchport access vlan 20 SW-Branch(config-if)#exit SW-Branch(config)#
Configure ip address on PCHO10
PCHO10> ip 192.168.10.1/24 Checking for duplicate address... PC1 : 192.168.10.1 255.255.255.0 PCHO10>
Configure ip address on PCHO20
PCHO20> ip 192.168.20.1/24 Checking for duplicate address... PC1 : 192.168.20.1 255.255.255.0 PCHO20>
Config ip address on PCBR10
PCBR10> ip 192.168.10.2/24 Checking for duplicate address... PC1 : 192.168.10.2 255.255.255.0 PCBR10>
Config ip address on PCBR20
PCBR20> ip 192.168.20.2/24 Checking for duplicate address... PC1 : 192.168.20.2 255.255.255.0 PCBR20>
After that do a ping test between PCs HO and Branch.
PCHO10> ping 192.168.10.2 84 bytes from 192.168.10.2 icmp_seq=1 ttl=64 time=42.641 ms 84 bytes from 192.168.10.2 icmp_seq=2 ttl=64 time=19.437 ms 84 bytes from 192.168.10.2 icmp_seq=3 ttl=64 time=20.863 ms 84 bytes from 192.168.10.2 icmp_seq=4 ttl=64 time=18.621 ms 84 bytes from 192.168.10.2 icmp_seq=5 ttl=64 time=27.816 ms PCHO10>
PCHO20> ping 192.168.20.2 84 bytes from 192.168.20.2 icmp_seq=1 ttl=64 time=14.547 ms 84 bytes from 192.168.20.2 icmp_seq=2 ttl=64 time=15.672 ms 84 bytes from 192.168.20.2 icmp_seq=3 ttl=64 time=19.206 ms 84 bytes from 192.168.20.2 icmp_seq=4 ttl=64 time=40.554 ms 84 bytes from 192.168.20.2 icmp_seq=5 ttl=64 time=27.468 ms PCHO20>
PCBR10> ping 192.168.10.1 84 bytes from 192.168.10.1 icmp_seq=1 ttl=64 time=17.805 ms 84 bytes from 192.168.10.1 icmp_seq=2 ttl=64 time=22.574 ms 84 bytes from 192.168.10.1 icmp_seq=3 ttl=64 time=14.186 ms 84 bytes from 192.168.10.1 icmp_seq=4 ttl=64 time=43.997 ms 84 bytes from 192.168.10.1 icmp_seq=5 ttl=64 time=18.362 ms PCBR10>
PCBR20> ping 192.168.20.1 84 bytes from 192.168.20.1 icmp_seq=1 ttl=64 time=17.707 ms 84 bytes from 192.168.20.1 icmp_seq=2 ttl=64 time=22.481 ms 84 bytes from 192.168.20.1 icmp_seq=3 ttl=64 time=15.062 ms 84 bytes from 192.168.20.1 icmp_seq=4 ttl=64 time=26.976 ms 84 bytes from 192.168.20.1 icmp_seq=5 ttl=64 time=15.206 ms PCBR20>
As you can see above, the connection between PC HO and Branch that connected on VLAN10 and VLAN20 is successfull.
Now verify cdp neighbor on SW-HO and Branch.
SW-HO#show cdp nei Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone, D - Remote, C - CVTA, M - Two-port Mac Relay Device ID Local Intrfce Holdtme Capability Platform Port ID SW-Branch Gig 0/0 140 R S I Gig 0/0 Total cdp entries displayed : 1 SW-HO#
SW-Branch#show cdp nei Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge S - Switch, H - Host, I - IGMP, r - Repeater, P - Phone, D - Remote, C - CVTA, M - Two-port Mac Relay Device ID Local Intrfce Holdtme Capability Platform Port ID SW-HO Gig 0/0 146 R S I Gig 0/0 Total cdp entries displayed : 1 SW-Branch#
As you can see above, CDP neighboor on SW-HO is a SW Branch. also CDP Neighboor on SW-Branch is SW-HO. That’s like both switch are directly connected while in real topology is connected to another switch.
