Configuration Dynamic Routing Protocol EIGRP on Cisco

In this tutorial I’ll discuss about dynamic routing protocol EIGRP. EIGRP is a distance vector routing protocol sometimes also called as advanced distance vector protocol. EIGRP is a Cisco open standar protocol have administrative distance is 90 and maksimum hop count is 255 (default 100). The following is the topologi :

Configure IP Address on R1 :

R1(config)#int g0/0/0
R1(config-if)#ip add 10.10.10.1 255.255.255.0
R1(config-if)#no shutdown
R1(config-if)#exit
R1(config)#int g0/0/1
R1(config-if)#ip add 192.168.1.1 255.255.255.0
R1(config-if)#no shutdown

Configure IP Address on R2 :

R2(config)#int g0/0/0
R2(config-if)#ip add 10.10.10.2 255.255.255.0
R2(config-if)#no shutdown
R2(config-if)#exit
R2(config)#int g0/0/1
R2(config-if)#ip add 192.168.2.1 255.255.255.0
R2(config-if)#no shutdown
R2(config-if)#exit

Configure IP Address on PC0 :

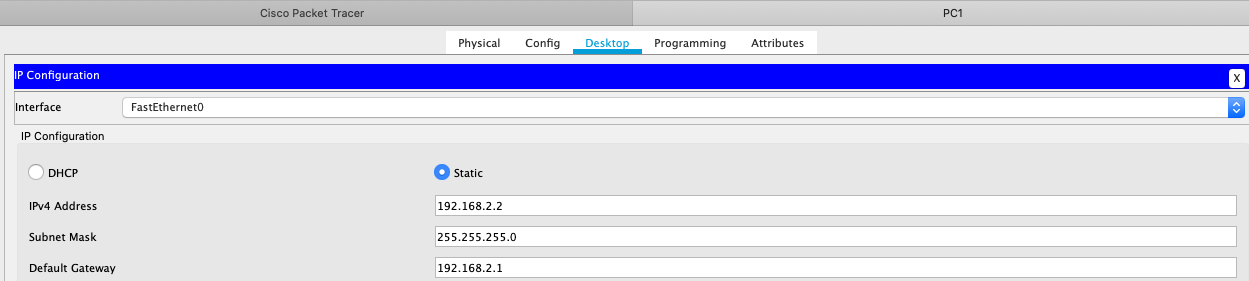

Configure IP Address on PC1 :



Now Configure EIGRP on R1 :

R1(config)#router eigrp 65000
R1(config-router)#network 10.10.10.0 0.0.0.255
R1(config-router)#network 192.168.1.0 0.0.0.255
R1(config-router)#no auto-summary
R1(config-router)#exit

Configure EIGRP on R2 :

R2(config)#router eigrp 65000
R2(config-router)#network 10.10.10.0 0.0.0.255
R2(config-router)#network 192.168.2.0 0.0.0.255
R2(config-router)#no auto-summary
R2(config-router)#exit



If you look at the network configuration format is 10.10.10.0 it’s ip network and 0.0.0.255 it’s wildcard mask from subnetmask 255.255.255.0 (wildcard mask write is 255.255.255.255 – 255.255.255.0 = 0.0.0.255).

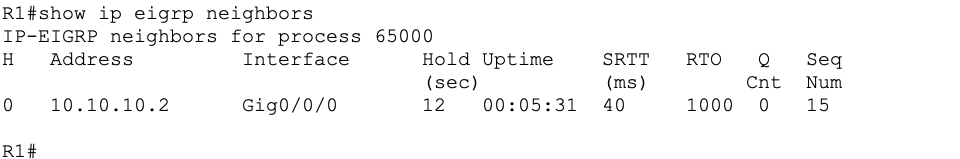

Check eigrp neighbors on R1 :

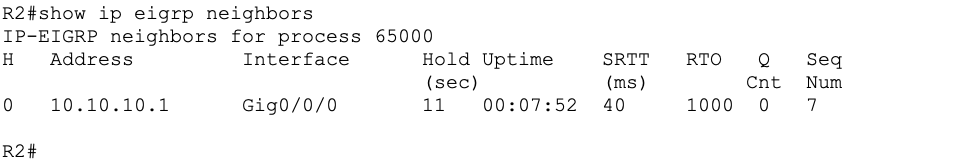

Check eigrp neighbors on R2 :



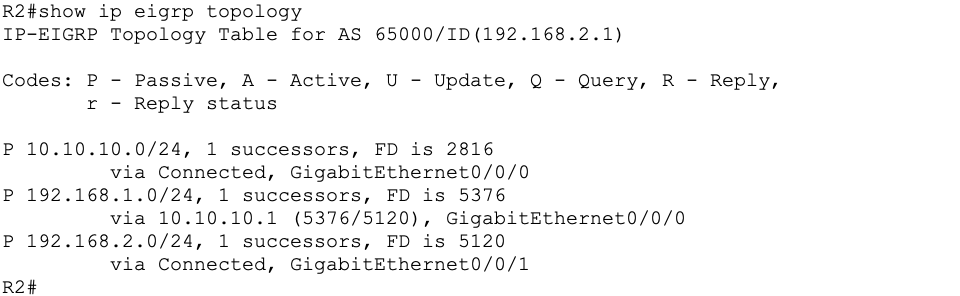

Check ip eigrp topology on R1 :

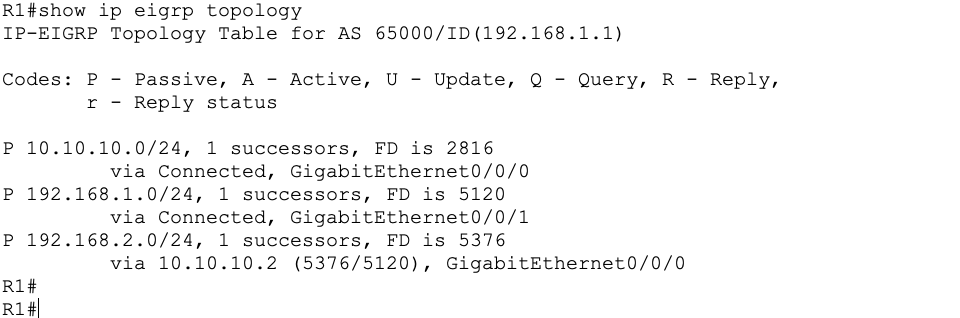

Check ip eigrp topology on R1 :

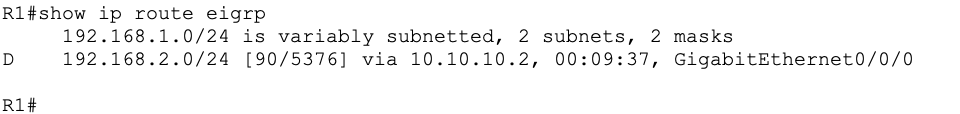

Check ip route eigrp on R1 :

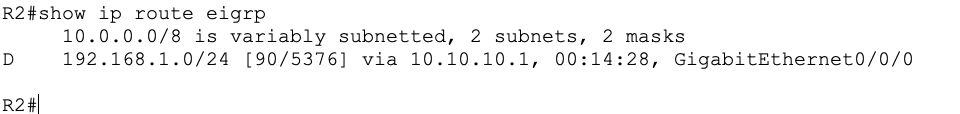

Check ip route eigrp on R2:



Now test ping between PC0 and PC1 :

Connection already successfull.
