Hello everyone, In this tutorial I’ll discuss about how to restrict an SSH Access only for specific network segment so only specific ip or network that can be access the switch or router.

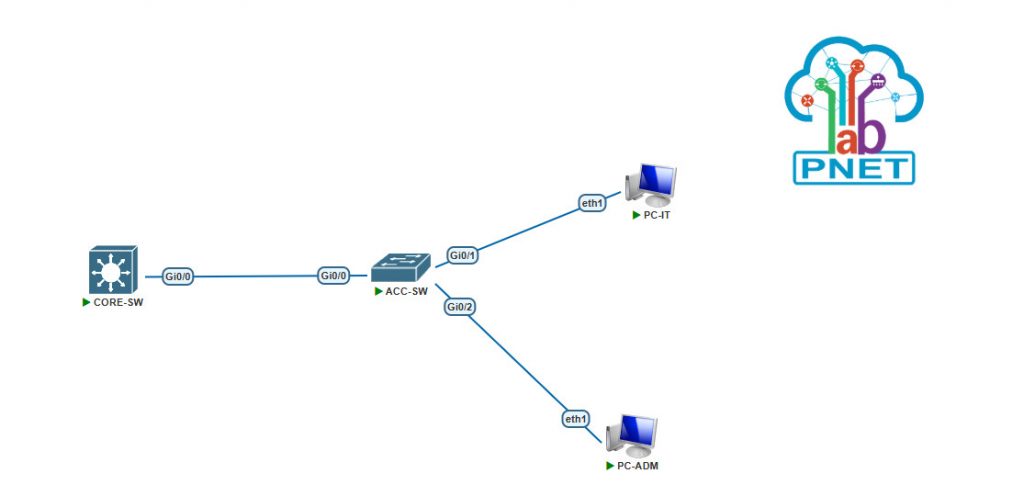

Here’s the topology used :

Scope of configuration :

1. Basic Config
2. DHCP Server https://www.taufiknurhuda.web.id/2022/07/06/how-to-configuration-dhcp-server-on-router-cisco/
3. SSH Configuration
4. Access List
5. Restrict Remote Access

Network Configuration :

• VLAN 10 [Management] –  10.250.1.0/24
• VLAN 20 [IT] – 172.16.100.0/24
• VLAN 30 [Admin] – 172.16.200.0/24

Configure VLAN Interface,  IP Address & Trunk interface on CORE Switch

CORE-SW(config)#vlan 10
CORE-SW(config-vlan)#name Management
CORE-SW(config-vlan)#exit
CORE-SW(config)#vlan 20
CORE-SW(config-vlan)#name IT
CORE-SW(config-vlan)#exit
CORE-SW(config)#vlan 30
CORE-SW(config-vlan)#name ADMIN
CORE-SW(config-vlan)#exit

CORE-SW(config)#int vlan 10
CORE-SW(config-if)#no shut
CORE-SW(config-if)#ip add 10.250.1.1 255.255.255.0
CORE-SW(config-if)#exit
CORE-SW(config)#int vlan 20
CORE-SW(config-if)#ip add 172.16.100.1 255.255.255.0
CORE-SW(config-if)#no shut
CORE-SW(config-if)#exit
CORE-SW(config)#int vlan 30
CORE-SW(config-if)#ip add 172.16.200.1 255.255.255.0
CORE-SW(config-if)#no shut
CORE-SW(config-if)#exit

CORE-SW(config)#int g0/0
CORE-SW(config-if)#switchport trunk encapsulation dot1q
CORE-SW(config-if)#switchport mode trunk

Configure DHCP Server on CORE Switch

CORE-SW(config)#ip dhcp excluded-address 10.250.1.1
CORE-SW(config)#ip dhcp excluded-address 172.16.100.1
CORE-SW(config)#ip dhcp excluded-address 172.16.200.1
CORE-SW(config)#ip dhcp pool POOL-IT
CORE-SW(dhcp-config)#network 172.16.100.0 255.255.255.0
CORE-SW(dhcp-config)#default-router 172.16.100.1
CORE-SW(dhcp-config)#exit
CORE-SW(config)#ip dhcp pool POOL-ADM
CORE-SW(dhcp-config)#network 172.16.200.0 255.255.255.0
CORE-SW(dhcp-config)#default-router 172.16.200.1
CORE-SW(dhcp-config)#exit

Configure VLAN & SVI on ACC-SW

ACC-SW(config)#vlan 10
ACC-SW(config-vlan)#name Management
ACC-SW(config-vlan)#exit
ACC-SW(config)#vlan 20
ACC-SW(config-vlan)#name IT
ACC-SW(config-vlan)#exit
ACC-SW(config)#vlan 30
ACC-SW(config-vlan)#name ADMIN
ACC-SW(config-vlan)#exit

ACC-SW(config)#int vlan 10
ACC-SW(config-if)#ip add 10.250.1.2 255.255.255.0
ACC-SW(config-if)#no shut
ACC-SW(config-if)#exit

Configure Interface Trunk port on ACC-SW

ACC-SW(config)#int g0/0
ACC-SW(config-if)#switchport trunk encapsulation dot1q
ACC-SW(config-if)#switchport mode trunk
ACC-SW(config-if)#exit

Configure access port. G0/1 for PC-IT and G0/1 for PC-ADM

ACC-SW(config)#int g0/1
ACC-SW(config-if)#switchport mode access
ACC-SW(config-if)#switchport access vlan 20
ACC-SW(config-if)#exit
ACC-SW(config)#int g0/2
ACC-SW(config-if)#switchport mode access
ACC-SW(config-if)#switchport access vlan 30
ACC-SW(config-if)#exit

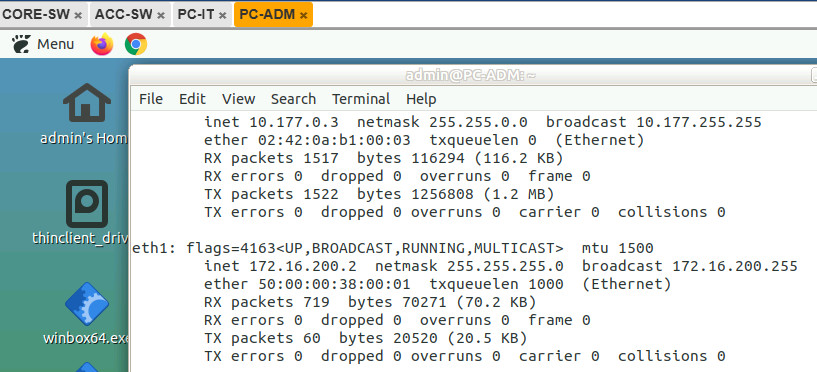

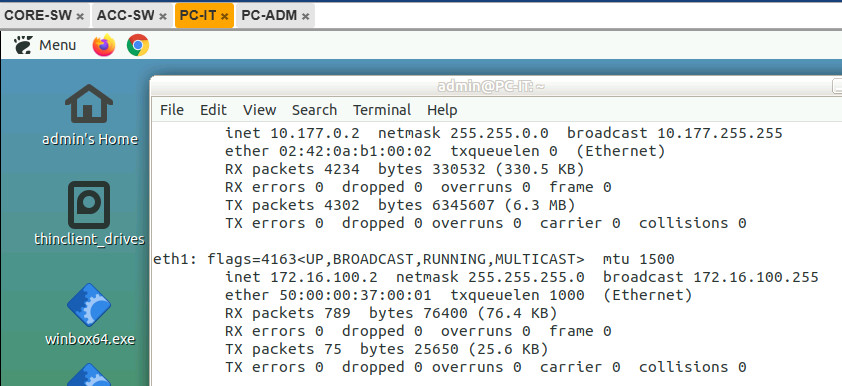

After that check and makesure the PCs already got the connection.

Configure SSH on CORE switch for general/basic remote connection.

CORE-SW(config)#ip domain-name taufiknurhuda.web.id
CORE-SW(config)#crypto key gen rsa mod 2048
The name for the keys will be: CORE-SW.taufiknurhuda.web.id

% The key modulus size is 2048 bits
% Generating 2048 bit RSA keys, keys will be non-exportable...
[OK] (elapsed time was 0 seconds)

CORE-SW(config)#
*Jul 19 16:32:00.635: %SSH-5-ENABLED: SSH 1.99 has been enabled
CORE-SW(config)#ip ssh version 2

Configure username  for login access & configure line vty

CORE-SW(config)#username taufik privilege 15 secret mysecret
CORE-SW(config)#line vty 0 15
CORE-SW(config-line)#transport input ssh
CORE-SW(config-line)#login local
CORE-SW(config-line)#exit

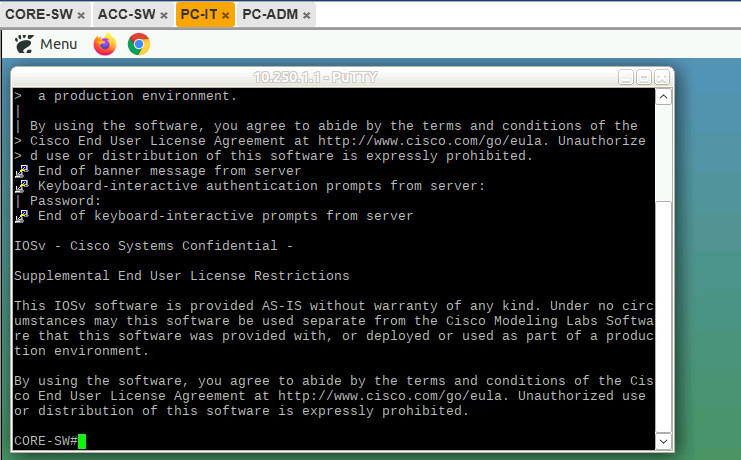

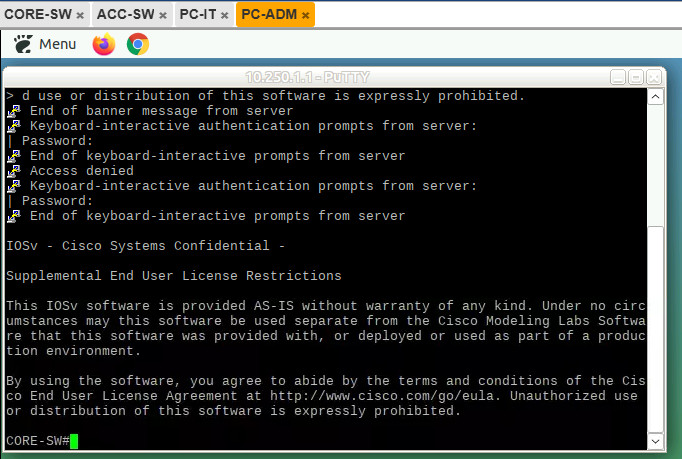

Initial test from both PC, SSH Access is success from PC-IT and PC-ADM

Now is the point of.  Set the policy that SSH Access to CORE switch is only allow from IT segment so if user ADMIN try to remote access it doesn’t allow to access.

Configure ACL (Access Control List) to permit IT Segment :

CORE-SW(config)#ip access-list standard PermitSSH
CORE-SW(config-std-nacl)#permit 172.16.100.0 0.0.0.255 log
CORE-SW(config-std-nacl)#exit

Configure access-class on the line vty :

CORE-SW(config)#line vty 0 15
CORE-SW(config-line)#access
CORE-SW(config-line)#access-class PermitSSH in
CORE-SW(config-line)#exit

Then do a test again and look at the differents.

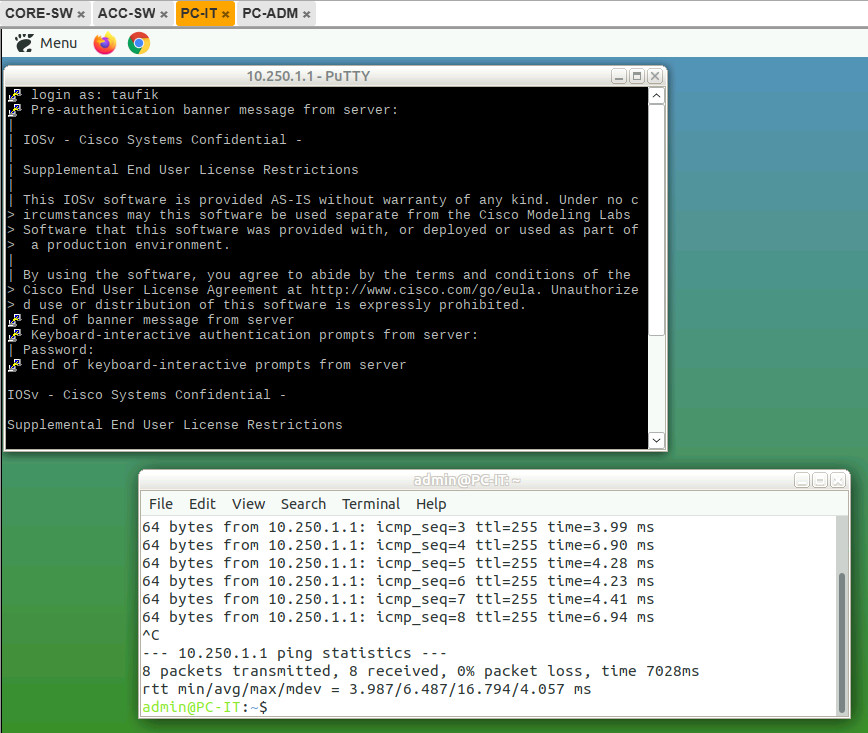

PC-IT with segment 172.16.100.0 is allowed to remote access CORE Switch.

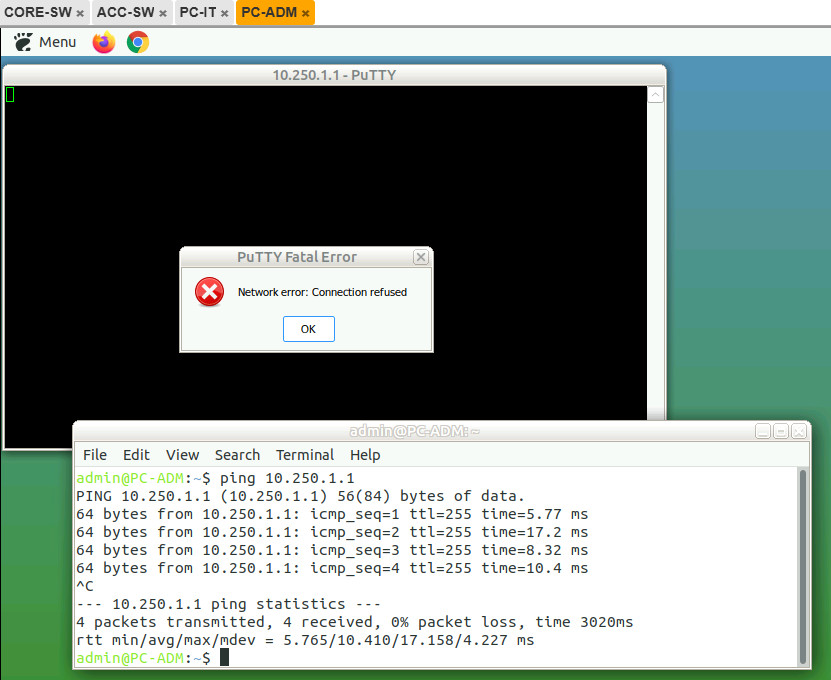

While when PC-ADM try to remote access CORE Switch, the connection is refused. Other connection like ping is still normal / doesn’t blocked.

Here’s a Log when PC-IT is success remote to CORE Switch :

CORE-SW#
*Jul 19 16:44:24.740: %SEC-6-IPACCESSLOGNP: list PermitSSH permitted 0 172.16.100.2 -> 0.0.0.0, 1 packet
CORE-SW#
